Cricopharyngeal myotomy and toxin botulinum injection for the treatment of upper esophageal sphincter disorders: a narrative review

Francisco Laxague^, Fernando A. M. Herbella2, Francisco Schlottmann1,3

1Department of Surgery, Hospital Alemán of Buenos Aires, Buenos Aires, Argentina; 2Department of Surgery, Escola Paulista de Medicina, Federal University of Sao Paulo, Sao Paulo, Brazil; 3Division of Esophageal and Gastric Surgery, Hospital Alemán of Buenos Aires, Buenos Aires, Argentina

Contributions: (I) Conception and design: F Laxague, F Schlottmann; (II) Administrative support: F Laxague, F Schlottmann; (III) Provision of study materials or patients: F Laxague, F Schlottmann; (IV) Collection and assembly of data: F Laxague, F Schlottmann; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

^ORCID: 0000-0002-3140-883X.

Correspondence to: Francisco Schlottmann, MD, MPH. Affiliate Professor, Department of Surgery, Hospital Aleman of Buenos Aires, Av. Pueyrredon1640, Buenos Aires, Argentina. Email: fschlottmann@hotmail.com.

Abstract: To assess the indications, safety, and results of cricopharyngeal myotomy (CPM) and toxin botulinum injection (TBI) for the treatment of upper esophageal sphincter (UES) abnormalities. The UES disorders can provoke overwhelming consequences such as bronchopulmonary aspiration, malnutrition, impaired quality of life or even death. The best treatment modality for UES disorders remains unclear. The purpose of this review was to assess indications and outcomes of CPM and TBI for the treatment of UES abnormalities. We performed a review of the literature regarding the outcomes of CPM and TBI for UES disorders. All articles between 1990 and 2020 describing CPM, TBI, or those comparing both techniques were analyzed. Treatment indications, safety, and outcomes of both procedures were evaluated as primary endpoints. Quality of life improvement was evaluated as a secondary endpoint. Outcomes after CPM and TBI for UES disorders are heterogeneously reported. Data suggest that both surgical and endoscopic CPM are safe and have encouraging long-lasting results in terms of symptoms relief and quality of life improvement. TBI is also a safe procedure, with good but temporary postoperative results. Current data are heterogeneous and show that both CPM and TBI are safe and effective treatment modalities for UES disorders. Better long-lasting effects, however, seem to be achieved with CPM.

Keywords: Upper esophageal sphincter (UES); cricopharyngeal myotomy (CPM); toxin botulinum injection (TBI)

Received: 21 January 2021; Accepted: 25 April 2021; Published: 25 September 2022.

doi: 10.21037/aoe-21-8

Introduction

The upper esophageal sphincter (UES) is mostly formed by the cricopharyngeal muscle (CM) which at rest, keeps a continuous tone with the underneath esophageal lumen closed, allowing automatic relaxations when swallowing (1).

Normal swallowing involves the relaxation of the CM, thereby sphincter relaxation failure or cricopharyngeal dysfunction leads to dysphagia and obstruction of food passage. The UES disorders can provoke overwhelming consequences such as bronchopulmonary aspiration, malnutrition, impaired quality of life or even death. Patients with cricopharyngeal dysfunction may refer upper esophageal reflux, coughing, halitosis (especially if associated with a Zenker’s diverticulum) or progressive swallowing weakness in neurological disorders. Several studies can be used to reach the diagnosis, such as flexible endoscopy, manometry, videofluoroscopy, and manofluorography. In patients with UES abnormalities, several treatments have been described being the surgical myotomy and the toxin botulinum injection (TBI) the most widely accepted (2).

Since its introduction in 1951 for the treatment of post-poliomyelitis dysphagia, surgical cricopharyngeal myotomy (CPM) has been considered the treatment of choice for patients with deficient CM relaxation (3). Since 1994, endoscopic laser-assisted transmucosal myotomy has been increasingly replacing the open approach (4). On the other hand, TBI into the CM has also been described with promising results (5). However, indications techniques and outcomes have varied among different studies (6-8).

We performed a review of the literature to assess the indications, safety and outcomes of CPM and TBI for the treatment of UES disorders. We present the following article in accordance with the Narrative Review reporting checklist (available at https://aoe.amegroups.com/article/view/10.21037/aoe-21-8/rc).

Methods

A literature search using the Medline database was performed to identify articles evaluating surgical myotomy and TBI for the treatment of UES disorders. Electronic searches in PubMed and Cochrane Central Register of Controlled Trials were performed using the following Medical Subject Headings (MeSH): “Upper esophageal sphincter disorders”, “Cricopharyngeal myotomy”, “Surgical myotomy”, “Toxin botulinum injection”, “Surgical myotomy vs. Toxin botulinum injection”. Each set of keywords was used to obtain the maximal number of articles. The search was limited to the adult population and to the English language.

All articles between 1990 and 2020 describing CPM, TBI, or those comparing both techniques were analyzed. A total of 237 articles were initially screened; after removing duplicates and excluding titles and abstracts that did not meet the inclusion criteria, 66 articles were revised based on the methodological quality of the publications. Finally, 42 articles were included in the review. The inclusion flowchart is displayed in Figure 1.

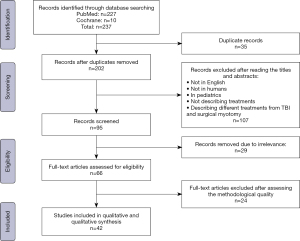

Figure 1 PRISMA flowchart. TBI, toxin botulinum injection.

Treatment indications, safety and outcomes of surgical myotomy and TBI were evaluated as primary endpoints. Quality of life improvement was evaluated as a secondary endpoint.

Surgical CPM

Several treatment modalities for UES disorders have been described, being the CPM the most frequently used (9). Historically, CPM has been performed by an open approach through a left-sided cervical incision and has been recognized as a definitive treatment option for UES swallowing disorders. It was first described in 1951 by Kaplan et al. for the treatment of a patient with post-poliomyelitis deglutition paralysis with substantial symptoms improvement (10).

CPM has also been used to treat oropharyngeal dysphagia in neurogenic, idiopathic, structural, and/or myogenic disorders. It is also indicated in patients with moderate or severe pharyngeal dysphagia associated with a defective UES opening with a normal swallowing, in patients with manometric, electromiographic, and/or radiological abnormalities, in those with severe complications due to progressive dysphagia (pneumonia, weight loss, significant impairment of quality of life), or in patients with associated comorbidities (3,10,11).

Surgical technique

The open technique for the CPM is usually performed through a left cervical incision as the preferred approach. After separating the sternocleidomastoid muscle and dividing the omohyoid muscle, the posterior portion of the pharyngo-esophagus is exposed by rotating and retracting the carotid sheath posteriorly and the larynx anteriorly. The extramucosal myotomy of the CM is performed extending the incision 3–4 cm above the esophagus. A proper division of the muscle fibers is crucial for success (11,12).

Outcomes

Since Kaplan et al. described the surgical technique in 1951 (10), several studies have been published analyzing CPM results. In 1988, Duranceau and colleagues reported a total of 188 patients undergoing CPM for UES disorders of different etiologies, with a success rate of 73% (13). Similarly, Buchholz reported 79% of success in 244 patients undergoing CPM for neurological UES disorders (14).

A previous study analyzed 28 patients who underwent CPM for dysphagia or aspiration secondary to UES abnormalities. Every patient had a pre- and postoperative video-fluoroscopy and manometry to evaluate postoperative results. Treatment success was defined as complete symptoms resolution (dysphagia and/or aspiration), and results showed a success rate of 75% (21/28) (4).

Even when cricopharyngeal disorders are associated with a Zenker’s diverticulum, surgical myotomy results are encouraging. A prospective study was conducted comparing the results between the surgical myotomy in patients with and without Zenker’s diverticulectomy and a normal control group, evaluating the impact of the myotomy in the UES opening. Twenty patients were included (12/20 had a Zenker’s diverticulum), and after the myotomy, UES opening was comparable with control healthy patients (15).

Although most studies analyzed post-myotomy outcomes, only a few included objective measurement instruments. Interestingly, Jiang et al. conducted a retrospective study measuring reflux symptoms and dysphagia with the Reflux Symptom Index and the Eating Assessment Tool 10, respectively, after an open CPM. Twenty patients underwent transcervical CPM, with or without Zenker’s diverticulectomy, with statistically significant improvement of reflux and dysphagia symptoms [21.8 to 8.9 and 19.1 to 5 pre- and post-operatively, respectively (P<0.001)] (16). Overall, data suggest that surgical CPM is safe, with encouraging postoperative results in terms of symptoms relief and quality of life improvement. Studies describing surgical CPM are summarized in Table 1.

Table 1

Evidence regarding cricopharyngeal surgical and endoscopic myotomy

Author Year Number of patients Surgical or endoscopic myotomy Complications Success rate (%) Follow-up (months)
St Guily et al. (17) 1994 11 Surgical None 72 5–53
Herberhold et al. (18) 1995 32 Endoscopic Mediastinitis, supraglotic edema 97 >84
Lim et al. (19) 1995 40 Endoscopic Esophageal perforation 90 2–22
Poirier et al. (20) 1997 40 Surgical Retropharyngeal hematoma 72.5 1–255
Ali et al. (21) 1997 8 Surgical Not available 75 1.5
Halvorson et al. (22) 1998 18 Endoscopic Not available 78 NA
Mason et al. (23) 1998 31 Surgical Pneumonia, neck hematoma, pulmonary edema 77 2–48
Lawson et al. (24) 2003 29 Endoscopic None 88 1–36
Zaninotto et al. (1) 2004 11 Surgical None 73 6–31
Takes et al. (25) 2005 10 Endoscopic None 60 2–24
Dauer et al. (26) 2006 22 Surgical and endoscopic Chest pain, fever, pharyngocutaneous fistula, tracheotomy 58 NA
Munoz et al. (27) 2007 14 Surgical Not available 25 6–10
Lawson et al. (28) 2008 31 Endoscopic None 64.5 12–23
Kos et al. (4) 2010 28 Surgical Aspirative pneumonia, mucosal fistula, fever 79 2.5–203
Ozgursoy et al. (29) 2010 14 Endoscopic None 100 6
Bachy et al. (30) 2013 32 Endoscopic Bleeding 84 6–99
Jiang et al. (16) 2017 41 Surgical and endoscopic Not available 97.5 5.4
Shibata et al. (9) 2020 14 Surgical Pneumonia, fever, nerve paralysis 100 66

Endoscopic CPM

Based on the promising results published by Dohlman treating Zenker’s diverticulum endoscopically, Halvorson in 1994 using the KTP laser, and Herberhold in 1995 using the CO2 laser, described the endoscopic laser-assisted myotomy (18,31). However, controversy arises regarding safety and efficacy of this highly demanding technique (24,25).

Technique

A laryngoscope is positioned at the post-cricoid place. A vertical midline incision over the mucosa covering the CM is then performed with the laser, exposing the muscle. After that, a submucosal resection of the CM is performed with the laser as extensively as possible. Finally, the incised area is covered with the incised mucosa (32).

Outcomes

Originally, CPM has been performed using potassium-titanyl-phosphate lasers. over the years, CO2 lasers have gained popularity due to their reduced postoperative morbidity (33).

Gilheaney et al. conducted a systematic review analyzing effectiveness of endoscopic CPM in patients with neurological disorders. Two studies were included, both of them using CO2 laser for CPM. Reduction of food aspiration and laryngeal penetration with no adverse events were reported. However, evidence is still scarce to strongly recommend the endoscopic approach for CPM in patients with neurological UES disorders (33).

A retrospective study was published in 2000, including 17 patients with UES disorders related to different etiologies. All the patients but one, improved swallowing characteristics and quality of life after the procedure, and no complications were reported, suggesting that the endoscopic CPM was a safe approach (34). Another retrospective review of patients undergoing CPM was conducted in the Mayo Clinic of Jacksonville in 2006, comparing the open myotomy versus the endoscopic approach. Eight patients underwent an open surgical myotomy, whereas 14 underwent an endoscopic approach. Improvements in swallowing function were similar between groups (objectively evaluated by the Functional Outcome Swallowing Scale), and there were 3 minor complications in the endoscopic group and 3 complications (1 minor and 2 major) in the open group (26). According to the published data, the endoscopic approach seems to be safe and effective. Studies describing endoscopic CPM are summarized in Table 1.

TBI

TBI has emerged as a less invasive treatment modality for patients with UES disorders (35). Toxin botulinum inhibits the release of acetylcholine, blocking the neuromuscular transmission and inhibiting the active contraction of the muscles and their tonicity; helping patients with hypertonicity of the UES (35).

TBI is often used for patients with transitory CM dysfunction and/or for those who are not candidates for a procedure under general anesthesia. TBI might also be helpful to select patients who could benefit from a definitive surgical myotomy (1,2).

TBI technique

Administered doses of toxin botulinum vary among authors, from 2.5 to 100 Botox units, and the injection technique is also diverse. Some authors prefer injecting botulinum neurotoxin under direct vision with an endoscopic approach, and others perform a percutaneous technique. TBI can be performed under electromyographic, fluoroscopic, and/or imaging guidance (36).

Outcomes

Zaninotto and colleagues, conducted one the largest series of patients with oropharyngeal dysphagia undergoing TBI. Twenty-one patients were included in the analysis, and 43% showed an improvement of the dysphagia. One patient died due to bronchopulmonary aspiration, and 12 failed to improve dysphagia symptoms [11 of these patients underwent a surgical myotomy of the CM, with a swallowing improvement of 72.7% (8/11)] (1).

Another study included 34 patients with symptomatic dysphagia, and analyzed cricopharyngeal electrophysiological characteristics to predict the efficacy of the cricopharyngeal TBI. Improvement of dysphagia two months after TBI was observed in 50% of the patients, with no complications reported in this series (37).

Restivo et al. published the results of 14 patients with UES disorders associated with multiple sclerosis, who underwent percutaneous TBI guided by electromyographic control. After two years follow-up, all patients (100%) showed significant improvement of the swallowing mechanism with no complications related to the procedure (38).

Finally, Kelly and colleagues published the outcomes of the largest series of patients undergoing TBI for UES disorders: 65% of patients showed symptom’s improvement after the treatment (32/49 patients) (3). Studies describing TBI are summarized in Table 2.

Table 2

Evidence regarding UES toxin botulinum injection

Author Year Number of patients Cause of UES dysfunction Complications Symptom’s improvement (%) Follow-up (months)
Schneider et al. (5) 1994 7 Heterogeneous None 71 2.5
Atkinson and Rees (39) 1997 5 Heterogeneous Left vocal paralysis and pneumonia secondary to aspiration when injection effect ended 80 N/A
Brant et al. (40) 1999 1 Stroke None 100 12
Alberty et al. (7) 2000 10 Heterogeneous None 100 N/A
Shaw and Searl (41) 2001 12 Heterogeneous Worsening dysphagia and pharyngeal laceration 83 N/A
Haapaniemi et al. (42) 2001 4 Heterogeneous None 75 N/A
Moerman et al. (43) 2002 4 Heterogeneous None 100 N/A
Parameswaran and Soliman (8) 2002 12 Heterogeneous Neck cellulitis 92 N/A
Zaninotto et al. (1) 2004 21 Heterogeneous Death secondary to a bronchopulmonary aspiration 43 17
Liu et al. (44) 2004 2 Inclusion body myositis None 100 23
Chiu et al. (45) 2004 1 Stroke None 100 12
Murry et al. (35) 2005 13 Heterogeneous None 85 5–9
Kim et al. (46) 2006 8 Stroke None 62.5 1–3
Masiero et al. (12) 2006 2 Stroke None 100 24
Restivo et al. (47) 2006 12 Diabetic neuropathy None 100 6
Suzukia et al. (48) 2007 1 Type 2 spinal muscular atrophy Temporary worsening of dysphagia 100 1
Krause et al. (49) 2008 1 Subarachnoid hemorrhage spasticity None 100 N/A
Alfonsi et al. (37) 2010 34 Heterogeneous None 50 2
Restivo et al. (38) 2011 14 Multiple sclerosis None 100 6
Woisard-Bassols et al. (50) 2013 11 Heterogeneous Worsening dysphagia and GERD 45 12
Kelly et al. (3) 2000 49 Heterogeneous Worsening dysphagia 65 N/A
Terré et al. (51) 2013 23 Stroke None 82 12
Kim et al. (52) 2017 10 Heterogeneous Unilateral vocal fold paralysis 63.9 6
Wei et al. (53) 2019 1 Stroke None 100 6

UES, upper esophageal sphincter; GERD, gastroesophageal reflux disease.

TBI for the treatment of CM dysfunction seems to be safe and effective, with success rates comparable to surgical myotomy. Although one of the most important disadvantages is its temporary effect, it is a valid and less invasive alternative to surgical myotomy. In addition, in case of failure, a surgical myotomy can always be attempted.

Expert commentary

We intended to analyze all the available literature regarding CPM and TBI for the treatment of UES disorders. With all the existing data, it is hard to give an evidence-based recommendation for this complex and poorly understood entity. However, we were able to draw some conclusions.

The TBI for the treatment of CM dysfunction is safe and effective. However, it offers only a temporary resolution of the symptoms. On the other hand, the CPM offers more durable results of the cricopharyngeal dysfunction. We often use the TBI as well as the cricopharyngeal dilation to select which patients might be benefited from surgical treatment. Overall, we prefer a myotomy as definitive treatment.

Promising results are reported regarding novel techniques such as the Z-POEM, which consists of an endoscopic myotomy through a submucosal tunnel for the treatment of Zenker’s diverticulum. Although we do not have experience with this treatment modality, we strongly believe that this kind of novel procedures should be explored in the future.

Overall, further studies analyzing diverse treatment modalities for UES disorders with objective assessments of their outcomes are still needed.

Conclusions

Current data are heterogeneous and show that both CPM and TBI are safe and effective treatment modalities for UES disorders. Better long-lasting effects, however, seem to be achieved after surgical or endoscopic myotomy, as compared to TBI.

Acknowledgments

Funding: None.

Footnote

Provenance and Peer Review: This article was commissioned by the editorial office, Annals of Esophagus for the series “Upper Esophageal Sphincter”. The article has undergone external peer review.

Reporting Checklist: The authors have completed the Narrative Review reporting checklist. Available at https://aoe.amegroups.com/article/view/10.21037/aoe-21-8/rc

Peer Review File: Available at https://aoe.amegroups.com/article/view/10.21037/aoe-21-8/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://aoe.amegroups.com/article/view/10.21037/aoe-21-8/coif). The series “Upper Esophageal Sphincter” was commissioned by the editorial office without any funding or sponsorship. FAMH served as the unpaid Guest Editor of the series and serves as an unpaid editorial board member of Annals of Esophagus from September 2020 to August 2022. FS serves as an unpaid editorial board member of Annals of Esophagus from August 2020 to July 2022. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
