In vitro modelling of the mucosa of the oesophagus and upper digestive tract: narrative review

Introduction

The human ‘swallowing apparatus’ consists of the pharynx, the upper oesophageal sphincter (UOS), the oesophagus, and the lower oesophageal sphincter (LOS). Major functions of the oesophagus are to co-ordinate the movement of food from the mouth to the stomach, and to control the retrograde movement of digestive material and digestive secretions—which can become pathological if excessive (1). While ingested food transits through the oesophagus in a relatively short period of time compared to distal parts of the gastrointestinal tract (GIT), oesophageal dysfunction appears to result in negative consequence on both health and quality of life. Disorders of the oesophagus include heartburn, dysphagia, eosinophilic oesophagitis, achalasia, oesophageal spasm, gastroesophageal reflux disease (2).

Several methodologies for in vitro simulation of the digestive tract are available to researchers, however, few of these consider the role of the oesophagus. This is part of a wider limitation of model gut systems in accurately modelling the digestive mucosa from both an anatomical and functional perspective.

Current model gut systems have been reviewed extensively elsewhere with reviews variously describing in vitro models by:

• Type; static models (3), dynamic models (4), cell based models (5-7), ex vivo models (8);
• Functionality; models of microbiome (9), physiological relevance (10,11);
• Or application; food digestion (12), drug delivery (13), screening and toxicity (14), assessment of pre- and pro-biotics (15), protein stability (16), nutraceutics (17).

These systems have many benefits including controllability, repeatability, ethics, timing and cost (7), but known limitations include modelling of hormonal control, simulation of physical forces [“the topography, motility and flow” (7)], immune function of the digestive tract, and accurate modelling of the absorptive mucosa.

Accurate modelling of the mucosa is an aspect of gastrointestinal physiology absent from the vast majority of these models and has only been the focus of limited discussion in the literature. Here, in a review of current literature, we aim to address this notable omission, discussing models of the oesophageal mucosa and the digestive and absorptive mucosa of the upper GIT including mucus function, and integration of mucus modelling in to in vitro digestion and absorption systems.

We present the following article in accordance with the Narrative Review reporting checklist (available at https://aoe.amegroups.com/article/view/10.21037/aoe-20-90/rc).

Static and dynamic digestion models

In vitro digestion models aim to simulate the processes of digestion and absorption carried out by the organs of the GIT (Table 1). Static digestion models have been reviewed extensively by Alegria et al. (3), and in an effort to harmonise the various static methodologies, the COST INFOGEST partnership developed a consensus method for static digestion modelling with a view to facilitating comparison of data and repeatability (18).

Static models simulate luminal aspects of digestion in a stepwise manner, modelling the chemical and enzymatic environment of successive organs of the digestive tract (summarised in Tables 2-4) without taking into account some of the more complex physiological processes of the digestive tract that dynamic models aim to replicate including; secretion, gradual pH changes, physical forces of mixing, shearing and motility, gastric emptying, mucus permeation, absorption, and hormonal control.

The functionalities of certain dynamic gastrointestinal models are summarised here, in brief. The Dynamic Gastric Model (DGM) (48), Human Gastric Simulator (HGS) (49) and the Human Gastric Digestion Simulator (HGDS) (50) are computer-controlled mono-compartmental systems (MoCS) that aim to recreate gastric secretions, churning and emptying.

The DGM consists of a flexible main body surrounded by a water jacket, a piston and barrel recreate peristaltic forces by fluctuating the water pressure in the jacket to simulate contractions in the fundus and antrum (48). The HGS, is a latex vessel subject to simulated gastric forces from mechanical, belt-driven rollers (49). Data from the DGM and HGS (51-53), is reported to correlate well with in vivo data and the systems have been used for modelling transit and emptying times, gastric enzymatic digestion, particle breakdown, rupture times of delivery systems, phase separation, gel formation and nutrient/drug release (48).

The TNO Gastro-Intestinal Model (TIM-1), The DIDGI MGS, and the Engineered Stomach and small INtestinal MGS (ESIN) are multi-compartmental models of the upper GIT. The TNO Gastro-Intestinal Model (TIM-1) consists of four compartments simulating: the stomach, duodenum, jejunum and ileum (54-57). The DIDGI MGS (58) simulates the upper GIT with a 2-compartment system, representing the stomach and small-intestine—both stirred glass vessels surrounded by a heated water jacket. The pH changes, secretion rates and emptying times are computer controlled, based on data collected from in vivo experiments. The ESIN (59) is comprised of 6 compartments, including: a meal reservoir (R1) which allows continuous passage of food material into the stomach compartment, a salivary ampoule (R2) which mixes the food components with salivary enzymes and buffers, the stomach (R3), the duodenum (R4), the jejunum (R5) and the ileum (R6).

While some of these systems have the capacity to model the oral phase and/or salivary secretions, none of them model oesophageal function. This reflects the limited role the oesophagus is considered to have in digestion, acting as a transport corridor between the mouth and stomach. However, modelling oesophageal function and interaction with the oral secretions and refluxed material from the upper digestive tract could bring important understanding of oesophageal pathologies.

Physiology of the oesophagus

The oesophagus is a 25–30 cm long, hollow, muscular tube, which connects the oral cavity and pharynx to the stomach (60). The oesophagus is split into two sections, the upper cervical section which makes up the first 2–6 cm of the oesophagus, and lower thoracic section (61). The UOS forms the junction between the pharynx and the cervical oesophageal region, and the LOS forms the junction between the thoracic oesophageal region and the stomach (60). The oesophagus transports ingested material, often in the form of a food bolus, from the oral cavity to the stomach via peristaltic waves which propagate down the oesophagus, shifting the bolus towards the stomach (62). A secondary function is to prevent reflux of gastric contents back into the oral cavity and to allow regurgitation and vomiting—a function mediated by the oesophageal sphincters (62).

Tissue structure

The oesophageal tissue is comprised of 4 layers: the mucosa, the submucosa, the muscularis externa and the adventitia (63). The mucosa is the uppermost layer on the luminal side of the oesophagus. It is composed of a surface epithelium (Figure 1A), a lamina propria and muscularis mucosae (Figure 1B). The oesophageal surface epithelium is a non-keratinised, stratified, squamous epithelia of around 30 cell layers (63-65). These cells are present throughout the oesophagus until a small area surrounding the LOS where gastrointestinal-like columnar cells may be observed (63). In Barrett’s Oesophagus, squamous epithelial cells around the LOS are replaced with columnar epithelial cells due to metaplasia (69). Found in the lower mucosal layers, below the basement membrane, is the lamina propria—a loose connective tissue rich with immune cells (63)—and the muscularis mucosae, a thin layer of longitudinal muscle cells (70). The mucosa is the primary defence against underlying tissue damage from acid refluxate (i.e., hydrochloric acid and pepsin), generating both pre-epithelial and epithelial defensive actions, most of which are provided by the specialised epithelium (65).

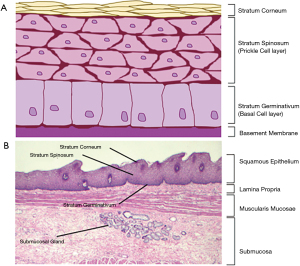

Figure 1 Diagrammatic representation of oesophageal tissue structure. (A) A diagram of the squamous epithelial layer of the oesophageal mucosa. The upper cell layer, the stratum corneum, is 7–8 cell layers of cornified epithelial cells which functions as a protective barrier against acid and abrasion (64). Below this is the stratum spinosum, an intermediate cells layer where squamous cells mature before undergoing cornification close to the luminal surface to form the stratum corneum (65,66). Attached to the basement membrane is the stratum germinativum, or the basal layer, containing the cells which undergo mitosis to replenish the upper oesophageal layers (67). (B) A histological section of the oesophageal mucosa and submucosa, adapted from Tracht et al. [2020] (68). In the upper squamous epithelial layer the stratum corneum, stratum spinosum and stratum germinativum can be seen. Below lies the lamina propria, the muscularis mucosae and the submucosa. The submucosa here can be seen housing a submucosal gland, which secretes mucin and bicarbonates.

The submucosa (Figure 1B) is comprised of connective tissue, lymphocytes, plasma cells, the submucosal plexus and submucosal glands (63) which secrete bicarbonate ions and mucin (71). Bicarbonate ions function to neutralise acids during reflux of gastric contents into the oesophagus (71). Secreted mucin, MUC5B specifically in this case (72,73), typically forms surface mucus (74-76). In the oesophagus however, it has been noted that the levels of MUC5B secretion by submucosal glands are not sufficient to provide a fully functioning surface mucus layer (hence the absence of a mucus layer in the oesophagus) (77), thus the mucin secretions most likely function to help lubricate the bolus as it passes through the oesophagus.

The muscularis propria is important for the generation of peristaltic waves which propagate boluses down the oesophagus. It consists of up to 33% striated muscle in the cervical region and transitions to smooth muscle in the lower thoracic region. There is a transition region as the striated muscle begins to change to smooth muscle, this is identified by a mixture of striated and smooth muscle cells and a lack of significant contractions (62,63). Interestingly, striated muscle of the upper cervical region is not controlled voluntarily despite being innervated with somatic motor neurons, instead being controlled by several reflex inputs which bring about peristaltic contractions. On the contrary, smooth muscle present in the thoracic region of the oesophagus creates peristaltic waves via stimulation of the myenteric plexus (61).

Finally, and unlike the remainder of the GIT, the oesophagus does not contain a serosa layer, instead having an adventitia, a base layer of fixed connective tissues, binding the oesophagus to the surrounding tissue and holding it in place (63).

The oesophageal sphincters

The UOS sphincter is the musculo-cartilaginous high-pressure zone at the end of the pharynx and start of the cervical region of the oesophagus. This anatomical sphincter serves as the first barrier to the oesophagus. It prevents both the reflux of gastric contents into the oral cavity, of which hydrolytic enzymes and acid would cause damage to tissues, and the flow of inhaled air from entering the digestive tract, while also allowing vomiting and regurgitation in the necessary scenarios. Like the rest of the cervical portion of the oesophagus, the muscles surrounding the UOS are striated, skeletal muscles. Moreover, it is similarly controlled involuntarily, despite being under the influence of somatic nerves, being controlled rather on the basis of a variety of reflex inputs to the innervated motor neurons (70,78).

The LOS sphincter is not easily identified as the characteristic thickening of muscle tissue common to anatomical sphincters is not seen with the LOS as functionality occurs through maintenance of muscle tone, modulated by several excitatory and inhibitory vagal pathways in the muscles modulating sphincter function (70,79-83). The functionality is controlled by two muscles; the smooth muscle of the lower thoracic oesophagus, and striated muscles fibres found in the crural diaphragm (82,84). The smooth muscle is organised in C-shapes, rather than rings, which interact with gastric sling fibres. When in a contracted state, the smooth muscles clasp together and pull in the gastric sling fibres, creating a closure, and during relaxation, in the instance of passing food for example, the clasp is released to create an opening (85). The striated diaphragmatic sphincter muscles work in tandem with the smooth muscle providing functional support (81,85).

Oesophageal defence and associated disease

The surface mucus gel coating the epithelium and secreted bicarbonates form a pre-epithelial defence in the majority of the GIT (86,87). For example, mucin glycoproteins in gel format provide an exclusion barrier in the small intestine by forming pores around 200 nm in size, providing protection against larger toxic particles, enzymes and microorganisms (88). Moreover, mucus in the stomach and small intestine protects the epithelia from enzymatic degradation (86), while facilitating the production of an unstirred water layer, rich in secreted bicarbonate ions to neutralise the harsh acid present in the stomach and duodenum (87). Mucus layers in the GIT, particularly those formed in the intestine by MUC2, are also known to produce an exceptionally rigid, firm mucus layer close to the epithelia which is often sterile even in the colon—a region where bacterial counts are ×10¹⁰–×10¹² per gram faecal matter—implicating its function as a mucosal protectant from microorganisms.

Though the oesophagus is associated with secreted mucus, with oesophageal submucosal glands strongly expressing and secreting mucin MUC5B (73), oesophageal epithelia scrapings have shown that the secretion is not significant enough to form a functioning surface mucus layer (0.47 µg/cm^-2 oesophageal scrapings vs. 500 µg/cm^-2 of stomach scrapings) (77). In the healthy oesophagus, bicarbonate secretions and salivary bicarbonates, are enough to limit epithelial damage to the oesophagus by acids (77). However, when acid levels are higher than normal during a reflux event the oesophagus is vulnerable to damage without a protective bicarbonate rich mucus layer (87).

Like the epithelium of the oral cavity, stratified squamous epithelium protects the delicate tissues below from abrasion, but the stratified squamous epithelia of the oesophagus have other specialised mechanisms that allow it to cope with acid reflux. The apical membrane has been shown to prevent H+ permeation into cells despite the presence of non-selective cation channels—it is thought that low pH causes a reduced influx of cations (39). Moreover, the apical junction complex, a complex which fuses adjacent cells in the stratum corneum and spinosum, regulates paracellular diffusion of H+ ions. There are 3 structures in total which make up the complex: closest to the apical side of the membrane are the tight junctions, this protein structure spans over the membranes of two cells and interlinks their cytoskeletons, bringing the membranes tight to one another. This complex is the main paracellular transport modulator of the complex. Found below the tight junctions are the adherens junction and found further below, close to the basolateral membrane, are desmosomes. Both protein structures provide structural support for the tight junction, while also having other regulatory roles within the cell. It is worth noting however that MUC1, a transmembrane mucin expressed in the surface epithelia of the oesophagus (73),may provide some protective functions, as studies have shown that MUC1 contains Lewis antigens—a feature of the epithelial glycocalyx where H. pylori is known to occur. In this circumstance, the MUC1 Lewis antigens act as a decoy by binding the H. pylori—this is followed by a complete release of MUC1 from the membrane, with MUC1 establishing its protective role by carrying the infective material far from the epithelia (89,90).

Despite these defence mechanisms, they are often easily overcome by unusually high levels of gastric reflux of acid and enzymes. High levels of reflux are often associated with disease, and depending on the severity of the cause, they can cause varying degrees of damage to the oesophageal mucosa, from minor issues, like tissue damage from acids, to serious issues like Barratt’s oesophagus and oesophageal adenocarcinoma (OADC).

In vitro oesophagus models

In vivo and ex vivo animal models, typically rodents like mice and rats, have been used to investigate oesophageal physiology (91,92). However, substantial differences between human and mouse oesophagus are a limitation. For example, the rodent oesophageal epithelia consists of around 4–6 layers, whereas that of a human consists of much thicker 25–30 layers and contains papillae like structures (91,92). Moreover, the mucosal layers of rodents are keratinised, as opposed to the non-keratinised cells present in humans, and do not contain mucus secreting glands (93). Oesophageal human cell models are widely used today (94) and continue to advance in complexity—with poor in vivo correlation of results from 2D monolayer methods leading to a focus on developing 3D models that accurately recapitulate the architecture and functionality of oesophageal tissue (95).

Organotypic 3D Raft Culture (OTC)

Transwell based Organotypic 3D Raft Culture (OTC) models utilise a transwell system in which submerged fibroblast cells, grafted onto a collagen matrix on the surface of the apical transwell membrane, act as a platform or “raft” for keratinocytes to differentiate into a functioning epithelial layer (Figure 2) (96,97). This model has been applied to a variety of tissues and have been used widely to investigate tissue development, disease and also for toxicity assays (97). OTC has been successfully used to model oesophageal epithelial generation and proliferation (98,99), oesophageal squamous cell carcinoma (ESCC) (100-102), eosinophilic oesophagitis (94) and Barratt’s oesophagus associated OADC (103-105).

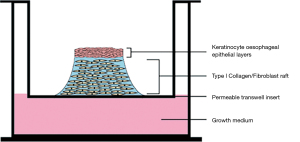

Figure 2 An oesophageal organotypic 3D culture system. The system depicts the end point of the experiment when the keratinocyte epithelial layer, sitting atop a collagen/fibroblast raft, has matured and is ready for analysis (96).

For example, in the work of Kalabis et al. [2012] (96), oesophageal fibroblasts were embedded in bovine collagen type I on an insert on top of a collagen matrix coated membrane and cultured for 7 days, forming a collagen/fibroblast raft on the insert membrane. Oesophageal keratinocytes were then seeded on the surface of the matrix and allowed to develop over the course of 4 days.Keratinocytes present at the air/liquid interface promote stratification and differentiation in the epithelial layer, generating epithelial layers representative of the oesophageal mucosa, recreating the stratum corneum, stratum spinosum and stratum germinativum, though the underlying tissue structures—which remain important to oesophageal function—are not recreated using this system.

3D multicellular spheroid culture and sphere formation assays

Multicellular spheroid culture, the first of the submerged 3D models used in oesophageal research, allows dissociated epithelial cells to reaggregate under submerged conditions. This reaggregation gives rise to self-organised spheres which resemble in vivo oesophageal tissue organisation (106). There are a variety of multicellular spheroid culture models (spinner flask suspension culture, liquid overlay culture, hanging drop culture and microfluidic culture), all with their own advantages and disadvantages, these are detailed in the review by Mehta et al. [2012] (107).

Multicellular spheroid culture have been shown to be effective models in drug permeation (107), cell functionality (108), tumour angiogenesis (109), and tumour-immune cell cross talk (110). In the oesophagus specifically, these models have been used to study ESCC-cell interactions (111), sphere formation in OSC-1 and 2 cell lines (98,112) and comparisons of spheroid formation between cell types (113). The associated limitations are the maintenance of uniform spheres, variability in cell type numbers with each sphere, and a lack of standardised methods for drug screening (114).

Sphere formation assays, another type of spheroid model, follow a similar principle to multicellular spheroid culture, but rather than allowing dissociated cells to aggregate and self-organise, multipotent stem cells from tissues are prevented from aggregating, allowing them to propagate and differentiate into single cell derived spheroids (115). This method has allowed research into the proliferation, self-renewal and multipotency of EADC (116,117) and ESCC (118-120) stem cells, which are known for their influence in their respective cancers.

3D organoids

3D organoids build on the ideas of the previous 3D culture models, aiming to accurately replicate in vivo organ architecture, processes, and parameters on a miniature scale. This is typically done using a single or small number of induced pluripotent or embryonic stem cells, embedded in an extracellular matrix hydrogel to support growth (often Matrigel) (121,122). These multipotent cells are allowed to differentiate, propagate and self-organise into a miniature organ-like scaffold containing a vast array of functional cell layer and types (122,123). The vast array of cell lineages and types give an accurate representation of organ parameters and architecture, unlike that of spheroid culture and OTC. Moreover, 3D organoids are much easier to maintain due to their ability to self-renew. In 3D organoid culture, a patient’s own stem cells can be used, which may have significant implications in the future of personalised medicine (122). Research using oesophageal organoids includes development, differentiation/proliferation and therapeutic approaches to EADC (124,125) and ESCC (126-128), oesophageal signalling pathways in GORD (94,129) and eosinophilic oesophagitis (94).

Absorption modelling—epithelial absorption and mucus function

Similarly, there are limitations to modelling of the intestinal digestive mucosa. Nutrient and drug absorption from the digestive tract involves mucus permeation, brush border enzyme activity and transport across the epithelia via passive diffusion, carrier mediated diffusion, active transport, and pinocytosis (Table 5) (135). Brush border enzymes and specific transport mechanisms are summarised in Tables 2-4. The use of in vitro cell models to simulate intestinal absorption is common, but systems such as the Caco-2 monolayer model do not include a mucus layer (136), other approaches are discussed later.

Mucus layers coat the epithelia and protect from microbial and enzymatic damage, while also allowing absorption of nutrients. The presence of a mucus layer does however, limit the absorption of certain nanoparticles and drugs in vivo (88). With mucus being a limiting factor for absorption in vivo, it is essential that the mucus layer is accounted for in absorption models.

Mucus is a negatively charged hydrogel, and is typically ~95% water with the glycoprotein mucin (Table 6) being the gel forming component (88,139,140). Mucins are categorised into either 2 subgroups, membrane tethered and secreted (139,141-143). Mucins are high molecular weight glycoproteins varying in size, domain organisation and function—despite this, there are common structural features. The protein backbone of the mucin glycoproteins consists of serine, threonine and proline (STP) repeats. These STP repeats are the fingerprint of mucin molecules. Each mucin type has a unique STP repeat sequence known as a variable number tandem repeat (VNTR) region (88,139,142,144). These are important regions which function as the site of carbohydrate chain attachment, primarily by O-glycosylation, which make up ~70% of the mucin molecular weight (145). The presence of carbohydrate chains on secreted mucins gives them the ability to form gels (146). O-glycosylation occurs when N-acetyl galactosamine (GalNAc) residues are covalently linked to serine or threonine by glucotransferases via an OH group (147). A progressive elongation of the carbohydrate chain, by Golgi glucosyltransferases, up to 20 residues in length occurs using four other carbohydrate residues: N-acetyl glucosamine, fucose, galactose and sialic acid (88,139,144). Proline’s role in the VNTR region is thought to be assistance in the linkage of GalNac residues to serine and threonine (147). Statistical analysis has noted a much higher number of proline residues surrounding glycosylated serine and threonine residues when compared to their non-glycosylated counterparts (148). with affinities depending on proline’s proximity to the O-glycosylation site, with proline at +3 and –1 strongly favouring O-glycosylation as opposed to proline at other sites (149).

Carbohydrate side chains are heavily sulphated upon elongation—it is their presence, alongside sialic acid, which allow mucus to have a negative charge at physiological pH levels (88).

Secreted mucins (Figure 3; Table 7), provide a mucus layer for several mucosal surfaces. Of these, MUC2, was one of the first secreted mucins to be characterised in detail (88,139,151-158). MUC2 (Figure 3) is the predominant secreted mucin of the SI (88,152,159,160) and the colon (152,157,158). At the N-terminal, vWF-like domains D1, D2, D’ and D3 are found, while at the C-terminal a vWF-like D4 domain is found, followed by a B, C and CK domain. The central region of MUC2 is split into two VNTR regions, a short region closer to the N-terminal which is flanked by 2 globular cysteine domains (CYS) domains at either side, and a longer region which spans most of the backbone. These regions are separated by the single globular CYS domain found at the C-terminal side of the first VNTR region (88,151,157). The initial short VNTR region is conserved and shows little variability in the number of STP repeats which are generally 23 amino acids long (151). The longer VNTR region however is highly variable with 40–185 STP repeats (151,161) which contributes to its large size of up to 7 mDa (155).

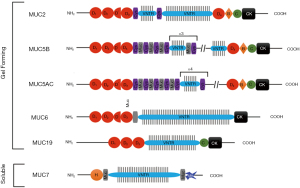

Figure 3 Diagrammatic representation of 5 secreted gel forming mucins (MUC2, MUC5AC, MUC5B, MUC6 and MUC19) and secreted soluble mucin MUC7. D represents vWF-like D domains (red). They are numbered D1-D4, with the first 3, as well as D’ which represents half a D domain, are found at the N-termini of gel forming mucins. D4 is often found at the C-termini of gel forming mucins. Also found at the C-termini of gel forming mucins is the CK domain (black) which represents a cysteine knot, as well as B (orange) and C (green) domains similar to those in vWF—this exempts MUC6 which does not contain B, C or D4 domains. In the central region, all mucins contain some form(s) of heavily O-glycosylated VNTR region (blue) and may also contain non-repetitive mucin sequences (grey) and globular cys domains (purple). MUC19 is differs in structure from many of the other secreted gel forming mucins as it lacks a D’, D4 and B domain, while also having an unusually long amino terminus. MUC7, the secreted soluble mucin, is much different from the other mucins and contains only a histidine domain (orange), a VNTR region flanked on either side by non-repetitive sequences, and a leucine zipper at the C-terminus (150,151).

The mechanism of secretion of MUC2 has been well characterised and is described in detail by Pearson et al. [2016] (88), Ambort et al. [2011; 2012] (153,154) and Johansson et al. [2011] (157). In the endoplasmic reticulum at pH 7.2, the MUC2 monomers are linked in trios at the D3 domain via disulphide bridges, creating MUC2 trimers. These trimers are transported to the Golgi Apparatus where the bulk of O-glycosylation takes place. In the Golgi Apparatus, the pH drops to 5.2—this causes protonation of histidine residues which in turn allows non covalent interactions between the vWF-like domains D1, D2 and D3, creating 5 or 6 sided ring-like structures which operate with D3 as the corners. An increase in Ca2+ levels in the Golgi Apparatus allows cross linking of negative charges, allowing the mucins to be tightly packed into secretory granules. A final dimerisation at the CK domain ensures that the mucin polymers are ready for secretion. Upon secretion, Na+ ions displace Ca2+ ions, uncoupling the cross links—this allows mucus to rapidly hydrate and swell 1,000–3,000-fold.

MUC2 polymers are arranged into 5- or 6-sided ring like structures which act as pores. Research suggests these pores vary in size due to the sliding of the mucus layers but are understood to have a size limit of roughly 200 nm in diameter (88). The CYS domains are thought to determine their pore size through non-covalent bonds between half-cysteine residues and adjacent, positively charged amino acids (154). These pores allow particles smaller than 200 nm to traverse the mucus layer and size exclude larger particles. With no mucus layer, particles larger than 200 nm will easily access the epithelia. Moreover, the strong negative charges will cause mucus/particle interactions. Small neutral particles will likely cross the mucus layer with little hindrance. Negatively charged particles will likely be repelled by the mucus layers negatively charged residues, and positively charged particles will bind negatively charged residues and become trapped.

Approaches to mucus modelling

Groo et al. [2014] identified that although many methods for mucus diffusion studies are available there is not a standard consensus protocol (162). Several in vitro and ex vivo approaches have been adopted to mucus modelling, some of which are integrated with cell-culture systems, and some which are non-integrated and model the mucus layer independently.

Li et al. [2013] described the lack of mucus modelling as a limitation of Caco-2 monoculture systems, and although they do express membrane bound MUC1, they do not produce secreted intestinal mucins (136). As an advance on CACO-2 monoculture, co-culture of Caco-2 and mucus producing HT29 cells have been developed. HT29-MTX cells only secrete gastric type MUC5AC, whereas HT29-FU cells adapted with fluorouracil secrete intestinal type mucin MUC2 (163). While a key advantage of co-culture systems is that the mucin is directly secreted above, and in intimate contact with the epithelia, the secreted mucin layer is not complete, and with a reported thickness of ~4 µm, which does not recapitulate an in vivo human mucus layer (which is two orders of magnitude thicker) (164). To allow for full integration of epithelial culture systems with digestive models, it is essential that the mucus layer retains relevant permeation characteristics, and can protect the underlying epithelia from components of digestive secretions. To our knowledge there is no published data on Caco-2-HT29-compatibility with digestive secretions, however it would be surprising if the thin mucin covering produced in co-culture would be sufficient to achieve either of these requirements. Despite limitations, the co-culture model is reported to generate more predictable experimental results compared to monoculture, and co-culture systems have been advanced further to integrate intestinal M-Like cells in a triple culture system (165).

Mucus/mucin source is one of the key considerations, and Lock et al. discuss the importance of factors including species, age, state of health, anatomical site of collection and inter-donor (animal or human) variability (163). Inter-donor variation can be somewhat overcome by pooling mucus from multiple donors prior to testing, and that samples can be stored frozen without significant changes to mucus rheology.

We have previously argued that while many studies have used mucins to simulate mucus function, it is important that these mucins replicate the native state (88). Sigma purified mucin is one of the most widely available commercial sources of mucin, but due to proteolytic degradation during purification is not structurally comparable to native mucin, cannot form a gel, and affects permeation characteristics (88,163).

Attempts have been made to develop ‘biosimilar’ mucus using polyacrylic acid (carbopol), BSA and linoleic acid in combination with Sigma porcine mucin to make the viscoelastic properties and microstructure more comparable to native mucus. While lipid and protein components are normal components of the mucus gel, polyacrylic acid is not, and significant research has been conducted to show mucin-carbopol interactions can bring about dramatic changes to viscosity (166). Because of its mucus modifying properties and inhibition of pepsin hydrolysis of mucus, carbopol has been investigated as a muco-protective agent (88).

In order to better replicate mucus thickness, our group in collaboration, developed a transmembrane permeation system using native porcine small intestinal mucus in a transwell set up with a resulting mucus layer of a thickness of 929±115 µm (167). While this is thicker than data reported for human small intestinal mucus thickness, the thickness is within the same order of magnitude, and allowed for a higher throughput, reproducible method from which time-course data could be collected, and permeation data can be normalised to in vivo mucus thickness. This has advantages over previous destructive methods which involve permeating compounds through a mucus filled device, and then taking sections in order to track compound permeation at a single timepoint.

Other approaches to mucus permeation include side-on three-compartment diffusion chambers, diffusion cells and Ussing chambers (162). A limitation of these systems can be mucus thickness, for example Bhat et al. used a 3,000 µm thick chamber which is considerably higher than in vivo, whereas Norris and Sinko used a mucus thickness of 380 µm. Furthermore Bhat et al. showed that the membrane material can cause significant variability in permeability data (168,169). This is a further advantage of using integrated systems that bring the mucus layer into direct contact with digestive secretions, and model epithelia.

While ex vivo studies of tissue samples can be limited by availability of material and are subject to donor variation, they naturally have advantages in terms of modelling the tissue architecture, and mucus thickness and composition (163). Intestinal loops and Ussing chambers are common methods for ex vivo tissue modelling.

Discussions and future directions

All 3D models described in this paper have proven to be useful in oesophageal research, with the 3D organoid presenting the most promising model, with a huge potential in personalised medicine. However, there is room for improvement, and this should be considered when further developing these models. While all models described may not contain all cells representative of a specific organ, and cell representation is somewhat variable between each culture, there is another major limiting factor - the lack of other, functional layers found deeper within the oesophageal tissue structure. This paper has already discussed the importance of the smooth muscle in the functions of the oesophagus, but there are important functions for immune cells, stromal cell types, neuronal control and a vascular system for nutrient transport and waste removal (92,114) which are not considered. Moreover, these deeper tissue layers can be subject to disease, such as ESCC or EADC tumour invasion (92). It is important to develop more complex oesophageal models in the future, which consider the latter points and contribute to a better mimicking of human oesophageal function, both in healthy and diseased oesophagi. There have been some successful developments in this area, with an example coming from Workman et al. [2017], who developed a human pluripotent-stem-cell-derived intestinal model to include a functional enteric nervous system by combining neural crest cells, which initiate mesenchymal differentiation into neuronal structures, and human intestinal organoids (129). Despite this model focusing on modelling the intestine, it shows promise for the utilisation of similar methods in the development of more complex oesophageal models.

An important area of future research will be to evaluate current and emerging models for use in modelling the action of reflux and the role this plays in disease pathology.

Through this paper we have identified limitations of modelling of the oesophageal and intestinal mucosa. Current research in our lab is based around development of fully integrated models that recapitulate the protective function and permeation characteristics of mucus to allow modelling of whole digestive secretions in cell culture systems that integrate a cell-compatible mucus barrier.
